Product Series

Stacked Energy Storage Battery
Updated time:Apr 30, 2026

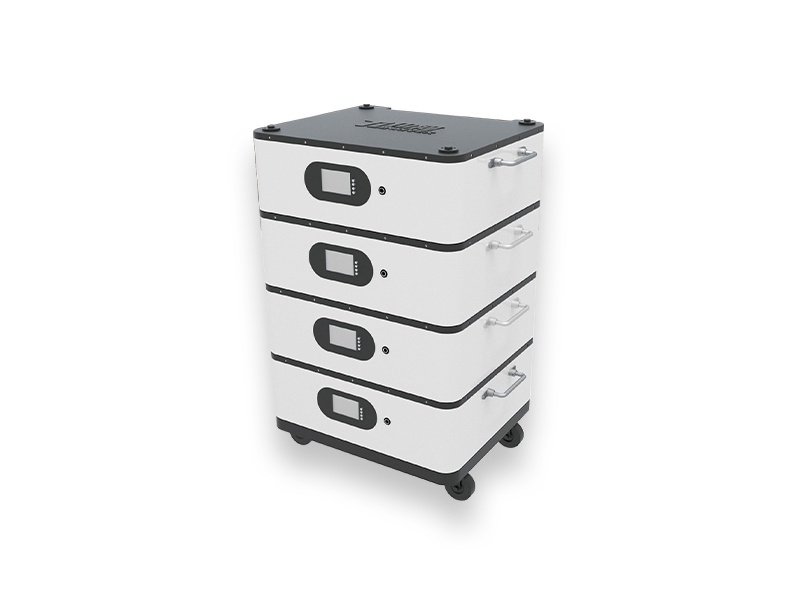

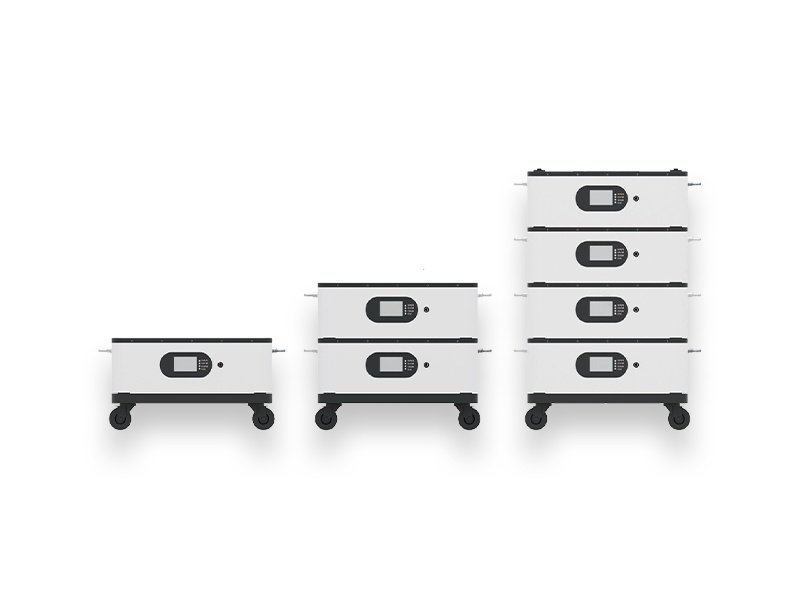

Stacked Energy Storage Battery

  • Stacked Energy Storage Battery
  • Stacked Energy Storage Battery

Specification Parameters

Specifications

Nominal Voltage51.2V
Nominal Capacity100Ah
DimensionsLength536±2mm
Width450+2mm
Height194±2mm
Overall Height776±2mm
Weight180kg ±2.5kg



Parameters

Battery Parameters (25℃)Rated Voltage51.2V
Rated Capacity100AH
Rated Energy5120Wh
Charge Efficiency99.5%@0.5C
Discharge Efficiency96-99%@1C
Terminal DiameterM8
Internal Resistance (fully charged,25℃)≤30mΩ
Cycle Life>3000cycles@0.5C 80%D.O.D
Capacity Affected by Temperature40℃101%
25℃100%
0℃90%
-10°℃80%
-20°℃75%
Standard Operating Temperature25℃±3℃
Operating Temperature RangeDischarge-10°C~50°C
Charge0°C~50°C
Storage-20°C~50°C
Waterproof and Dustproof PerformanceIP54
Charging Voltage58.4V
Standard Charging (25℃士3℃,relative humidity<75%)0.2C current charge to 58.4V then constant voltage 58.4V until current drops to 0.02
Charging Current8OA
Maximum Charging Current100A
Continuous Discharge Current100A
Maximum Pulse Current200A（<500us)
Charging Cut-off Voltage58.4V
Discharge Cut-off Voltage43.2V
Communication Protocol (optional)RS485/CAN
SOCDisplay Screen
Additional FunctionsBluetooth/Heating
DeviceCombination16S1P
Outer ShellMetal
