Wall-mounted energy storage battery
Updated time:Apr 30, 2026

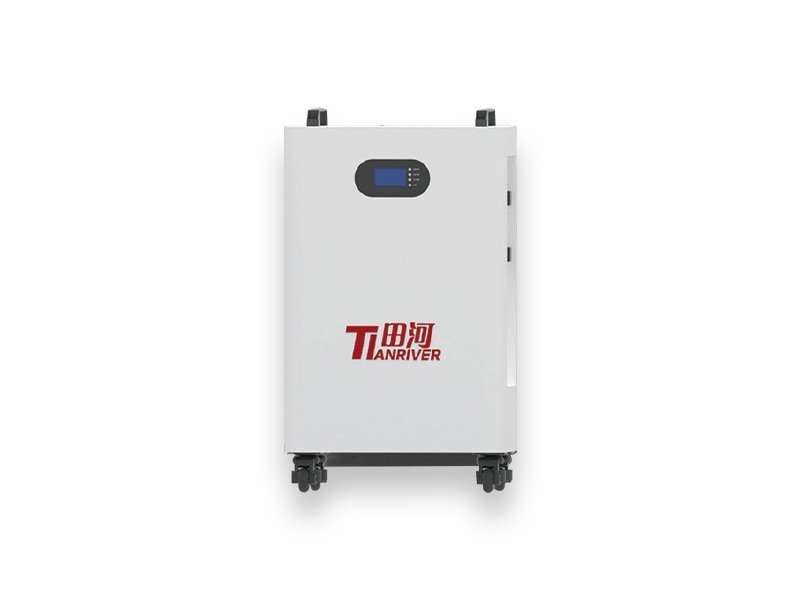

Wall-mounted energy storage battery

  • Wall-mounted energy storage battery

Specification Parameters

Project NameBasic Parameters
Product Model51.2V314Ah
Rated Voltage51.2V
Rated Capacity314Ah
Rated Energy16076Wh
Cooling MethodNatural Cooling
Configuration Method16S1P
Charge/Discharge Port (Same Port/Separate Port)Same Port
Communication Port (RS232/RS485/CAN)RS485/CAN
Display ScreenButtons
Heating FunctionDefault NoneOptional
Battery Pack Charging Cut-off Voltage58.4VCharging Protection Voltage
Battery Pack Discharging Cut-off Voltage43.2VDischarging Protection Voltage
Cell Charging Cut-off Voltage3.65V
Cell Discharging Cut-off Voltage2.7V
Charging Operating Temperature Range0℃~50℃
Discharging Operating Temperature Range-10°C~50°C
Storage Temperature-20°C~50°C
Standard ChargingContinue charging at 0.5C current until 58.4V cut-off voltage
Standard DischargingContinue charging at 0.5C current until 43.2V cut-off voltage
Maximum Permissible Continuous Charging Current150A
Maximum Permissible Continuous Discharging Current150A
Discharging Protection Current300A
Battery Box Dimensions (L*W*H)510x261x720mmTolerance ±2mm
Battery Box Weight85KgTolerance ±3Kg
