Tianhe Incrementer-GB270
Updated time:Apr 30, 2026

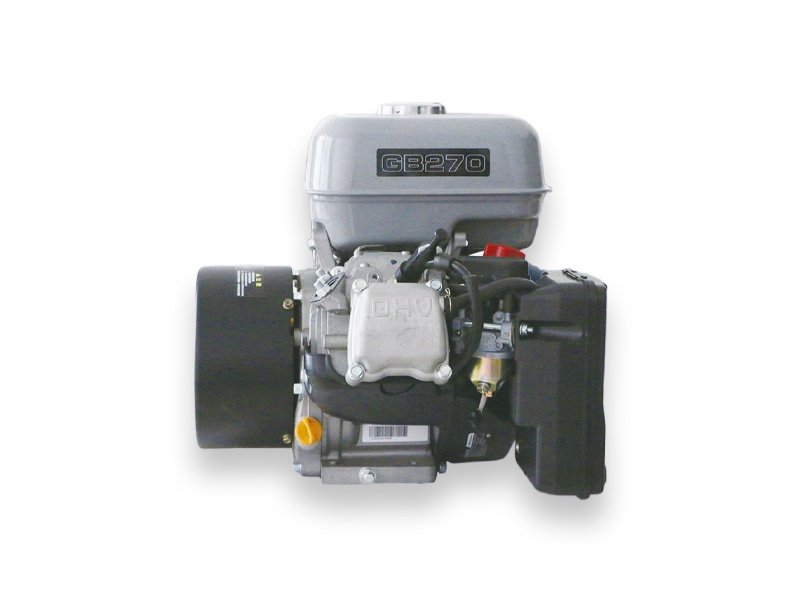

Tianhe Incrementer-GB270

Product Advantages

Low energy consumption

Diesel power

High load-bearing capacity

Automatic start/stop

Strong load-bearing capacity

Heat insulation and anti-scalding

pure copper motor

Performance Parameters

Rated power(kW/rpm)

5/3800

Rated speed(r/min)

3800

Maximum power(Kw/rpm)

6/4500

Bore(mm)

75

Stroke(mm)

61.5

Displacement(cc)

272

Maximum torque(N.m)

15.5

Idle speed(r/min)

1650±150

Rated engine oil filling amount(L)

1

Net weight(kg)

17.2

Dimensions(mm)

379x345x368


Product Introduction

■  The integrated tank cap and tank body design can effectively reduce the decline in tank cap screw-down torque and the escape of fuel vapor;

■  The plug-in high-position engine oil dipstick and non-shedding air filter knob make for a better user experience;

■  The newly designed anti-scald shield for the muffler can directly exempt regulatory requirements, and compared with traditional steel wire mesh, the anti-scald shield offers higher strength and better workmanship;
